Description
Dual Contact Relay IAMs allow fire alarm controlpanels to control two remotely located Form “C” contact using IDNet or MAPNET II addressable communications for both data and module power. Typical applications
would be for switching local power for control functions such as elevator capture, or control of HVAC components, pressurization fans, dampers, etc. Relay status is also communicated requiring only one device address. Visible LED flashes to indicate communications, can be selected at panel to indicate activated state
Optional 4” square box covers are available to allow LED to be viewed after installation
UL listed to Standard 864
Features

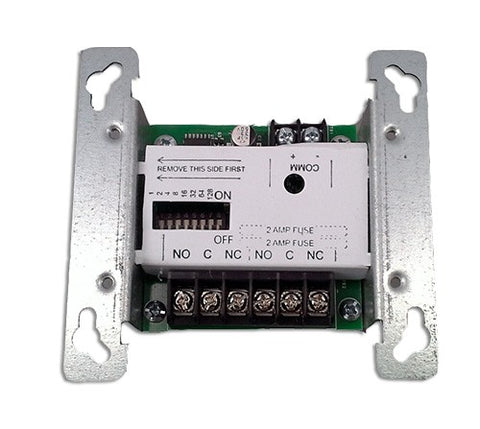

Dual Contact Relay IAM (Individual AddressableModule): A single addressable point provides control and status
tracking of two, 2 A Form “C” contacts Low power latching relay design allows IDNet or MAPNET II communications to supply both data and module power
Relay is set to OFF on initial power up and upon loss of IDNet or MAPNET II communications. For use with following Simplex control panels: Model Series 4100ES, 4010ES, and 4100U fire alarm control panels for IDNet communications
Model Series 4100/4100U/4100ES, 4120, 4020, and 2120 Communicating Device Transponders (CDTs) equipped with MAPNET II communications
Compact construction: Mounts in standard 4” (102 mm) square electrical box,
optional adapter bracket is available to mount in a 4 11⁄16” square electrical box
Screw terminals for wiring connections
