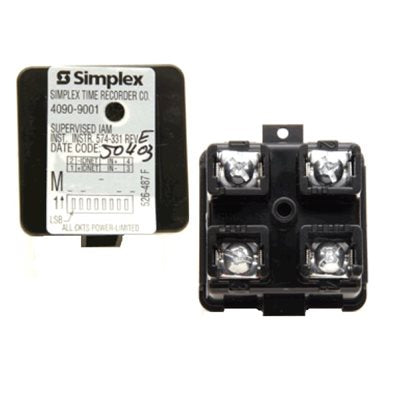

Simplex 4090-9001 IAM Supervised Module

  • Sale
  • Regular price $198.99


IDNet Relay IAMs allow fire alarm control panels to

control a remotely located Form “C” contact using IDNet

addressable communications for both data and module

power. Typical applications would be for switching local

power for control functions such as elevator capture, or

control of HVAC components, pressurization fans,

dampers, etc. Relay status is also communicated requiring

only one device address



Individual Addressable Relay Module (Relay IAM):

  • IDNet addressable control for use with Simplex fire alarm control panel models 4100ES, 4010ES, 4100U,4008, and 4010
  • A single addressable point provides control and status tracking of a Form “C” contact
  • Low power latching relay design allows IDNet communications to supply both data and module power
  • Relay is set to OFF on initial power up and upon loss of IDNet communications Compact, sealed construction:
  • Enclosed design minimizes dust infiltration Mounts in standard 4” (102mm) square electrical box,optional adapter bracket is available to mount in a ” (119 mm) square electrical box
  • Screw terminals for wiring connections
  • Visible LED flashes to indicate communications
  • Optional covers are available to allow LED to be viewed after installation

UL listed to Standard 864
