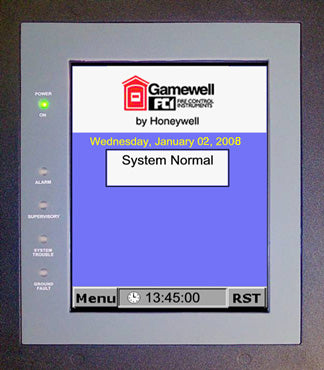

Gamewell-FCI NGA Network Graphic Annunicator 1100-0505

  • Sale
  • $1,512.17
  • Regular price $2,610.00


**FCI Products can only be purchased in the State of Florida**

The NGA mounts in NetSOLO® and E3 Series® enclosures or it can be remotely located. It occupies one (1), standard slot in the cabinet and directly connects to the INI-VGC or RPT-E3 eliminating the need for a separate ARCNET interface.

The NGA occupies one node on the Broadband network. The back-lit LCD display indicates events stored in the system event log, the status of analog addressable monitor and control points and provides diagnostic fault codes/ messages. The attractive, state-of-the-art display is user-friendly, easy-to-read and affords the end-user with the means to perform numerous functions via the touch-screen feature which is software programmable. Some switch functions are: Acknowledge, Signal Silence, Reset, Log Events, and system maintenance functions. Additional LEDs located on the display panel perimeter indicate Power On, Alarm, System Trouble, Supervisory and Ground Fault conditions.


  • Listed under UL Standard 864, 9th Edition
  • 1/4” VGA display multipurpose touchscreen provides the following options or enclosures
  • Up to 512 user-defined messages may be configured Messages can be up to 77 characters in length Display font and color may be selected for each message
  • Software programmable touch-screen interface
  • Mounts in NetSOLO® and E3 Series® command center mounting spaces or enclosures
  • 625K baud ARCNET communications
  • User-friendly design
  • RS-232 interface


Operating Voltage 24 VDC from PM-9 power supply
Operating Current 0.200 amp*
Alarm Current 0.028 amp
Operating Temperature 32° to 120° F (0° to 49° C)
Relative Humidity 0 to 93%, non-condensing at 90° F (32° C)

*Normal operating current. During power failure, current drops to 0.045 amp, since the back light is extinguished
