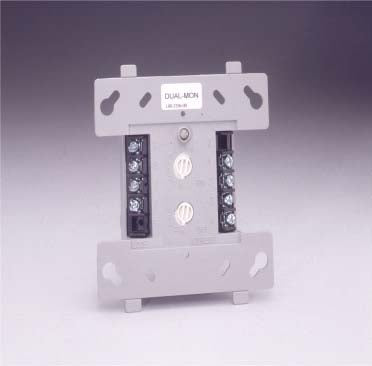

Gamewell-FCI AMM-2RIF Addressable Dual Input / Dual Output Module

  • Sale
  • Regular price $260.10


**FCI Products can only be purchased in the State of Florida**

The AMM-2RIF combines two relay outputs and two monitor inputs into one module device. Each monitor input provides an interface between a fire alarm control panel and one or more normally open contact-type devices. The AMM-2RIF is compatible with the E3 Series, S3 Series, and 7100 Series FIre Alarm Control Panels.

The Gamewell-FCI Velociti Series multi-function module (AMM-2RIF) combines two relay outputs and two monitor inputs into one device. The module is capable of Class B supervised wiring that is used for the monitored devices. It also contains Form C relay contacts which allow the panel to switch the contacts on command. There is a dedicated LED on the module for each input and output. The fire alarm control panel can use these bi-color LEDS to indicate normal, alarm and trouble conditions. This module is ideally suited for areas where inputs and outputs are needed in the same location. It can be used to function with any of the following devices: When you combine two relay outputs and two monitor inputs into one device, you can save the cost of installing four devices. This feature can be beneficial when you need to install these devices in high-rise buildings or large shopping complexes. The two input/two output module is the same size module as the standard single modules. It can mount directly to a 4-inch (10.16 cm) square electrical box, the surface mounted SMB500, or it can be installed into the DNR(W) duct housing.

Featues

  • Provides two relay outputs and two monitor inputs in one space-saving module
  • Contains the following: - Two sets of Class B initiating device circuits - Two sets of Form C relay contacts
  • Contains the following: - Two sets of Class B initiating device circuits - Two sets of Form C relay contacts
  • Includes a Dip switch to manually disable one input and one output
  • Offers visual rotary, decimal switch addressing (01-159)

Specifications

Supervisory Current 0.00130 A
Alarm Current 0.024 A
Operating Temperature 32° to 120° F (0° to 49° C)
Relative Humidity 10 to 93% (non-condensing)
Dimensions 4 1/2” H x 4” W x 1 1/4” D (11 H x 10.2 W c 3.2 D cm)
End-of-line Resistor 47k Ohms Table 1 lists the Relay Contact Ratings.
