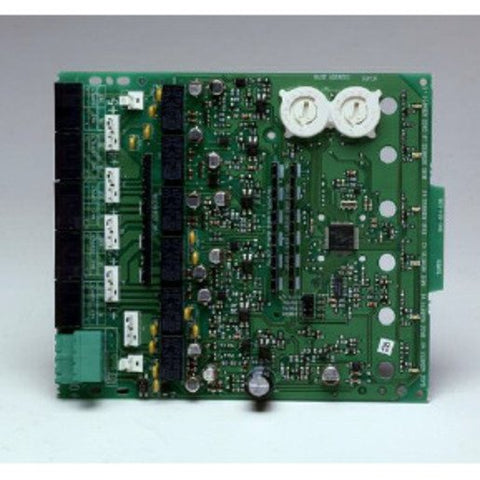

Farenhyt IDP-CONTROL-6 Addressable Notification Module

  • Sale
  • Regular price $66.30


**FCI Products can only be purchased in the State of Florida**

The Silent Knight IFP-series fire alarm control panels (FACPs).The IDP-Control-6 has six integrated modules for maximum flexibility, allowing you to add notification circuits wherever they are needed on an IFP FACP signaling line circuit (SLC) loop. The IDP-Control-6 provides supervised monitoring of wiring to load devices that require an external power supply or amplifier to operate, such as bells, horns, and strobes. It is capable of supporting Class B (Style Y) and Class A (Style Z) wiring. Upon command from the FACP, the IDP-Control-6 will disconnect the supervision and connect the external power supply across the load device. The disconnection of the supervision provides a positive indication to the panel that the control relay actually turned on. The external power supply is always relay isolated from the SLC loop, so that a trouble condition on the power supply will never interfere with the rest of the system. If needed, you can disable a maximum of three unused modules on the Control-6 board. Each module has terminals for connection to an external supply circuit for powering devices on its notification appliance circuit (NAC). One or more multiple power supplies or amplifiers can be used. The IDP-Control-6 has a short circuit protection monitor protects eternal power supplies against short circuit conditions on the NAC.


Features

  • Flexible solution for adding notification circuits where needed.
  • Removeable 12 to 18 AWG pulg-in terminal blocks
  • Support for Class B or Class A wiring
  • Individual LED for each module
  • Two module mounting in the IDP-ACB cabinet
  • Rotary address switches for fast instatllation
  • Polling LED visible through the cover plate *
  • Attractive cover plate.
  • UL Listed.
