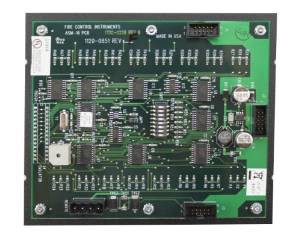

Gamewell-FCI 1100-0455 ASM-16 Addressable Switch Module

  • Sale
  • Regular price $495.46


**FCI Products can only be purchased in the State of Florida**

 The Gamewell-FCI, ASM-16 Addressable Switch Module serves as the point of interface between an operator and the system’s audio evacuation, fire fighter intercom, and building control circuits. It is a component of the following systems:

• E3 Series® Expandable Emergency Evacuation System

• E3 Series Combined Fire and Mass Notification System

• E3 Series Broadband Voice Evacuation System

• Net Solo® System

•The ASM-16 is a configurable.

Features

Listed under UL® Standard 864, 9th Edition. • Listed under UL® Standard UL2572 for Mass Notification. • Each INI-VGC supports up to 16 ASM-16 switch modules for a total of 256 switches. • Each ILI-MB-E3/ILI95-MB-E3 supports up to 16 ASM-16 switch modules for a total of 256 switches. • Each ASM-16 switch has 3 fully programmable status, indicating LEDS: red, yellow, and green. • All switch functions are fully software programmable. • Slip-in label inserts allow easily modified switch designations..

Specifications

Operating Voltage: 24 VDC (nominal) (from the PM-9/PM-9G power supply) Operating Current: 0.011 amp. (with no LEDs lit) Operating Temperature: 32° to 120° F (0° to 49° C) Relative Humidity: 0 to 93% (non-condensing) at 90° F (32° C)
