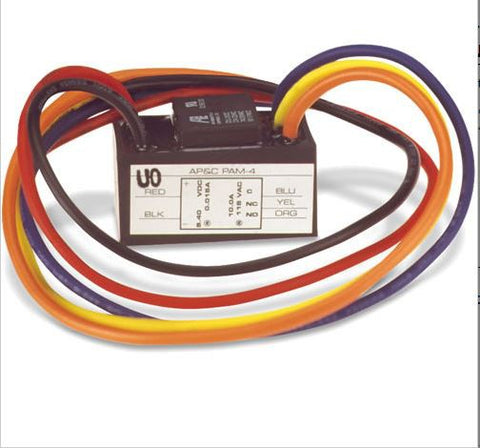

PAM-4 Single SPDT relay with LED

  • Sale
  • $19.13
  • Regular price $30.05


 **CALL FOR AVAILABILITY**

A red LED is provided which, when illuminated, indicates the relay coil is energized.

These devices are ideal for applications where remote relays are required for control or status feedback. They are suitable for use with HVAC, temperature control, ?re alarm, security, energy management, and lighting control systems.

Features

  • Single SPDT relay with LED
  • Double-sided adhesive tape
  • Mounting screw
  • 12" leads
  • 6 wire nuts

Specifications

Power Requirements: PAM-4: 0.015 Amps per position @ 24 VDC or 12 VDC
Relay: UL recognized SPDT
Contact Rating: PAM-4: 10.0 A @ 120 VAC, 7.0 A @ 24 VDC, 250uA @ 5 VDC
Ambient Temperature: -58°F to 185°F (-50°C to 85°C). Dimensions:
Dimensions: 1.5" (38.1 mm) H x 1" (25.44 mm) W x 0.875" (22.2MM) D / 12" (304.8mm) 18 ga. wire leads
