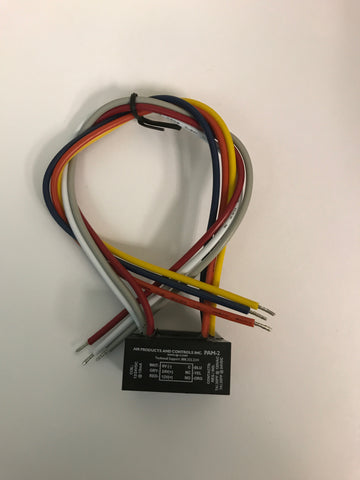

A red LED is provided which, when illuminated, indicates the relay coil is energized.
These devices are ideal for applications where remote relays are required for control or status feedback. They are suitable for use with HVAC, temperature control, ?re alarm, security, energy management, and lighting control systems.
Features
- Single SPDT relay with LED
- Double-sided adhesive tape
- Mounting screw
- 12" leads
- 6 wire nuts
Specifications
| Power Requirements: | Per position - 0.015 Amps @ 24VDC, 24VAC, 115VAC |
| Relay: | UL recognized SPDT |
| Contact Rating: | PAM-2: 7.0 A @ 115 VAC, 7.0 A @ 28 VDC, 250uA @ 5 VDC. |
| Ambient Temperature: | -58°F to 185°F (-50°C to 85°C). Dimensions: |
| Dimensions: | 1.5" (38.1 mm) H x 1" (25.44 mm) W x 0.875" (22.2MM) D / 12" (304.8mm) 18 ga. wire leads |
