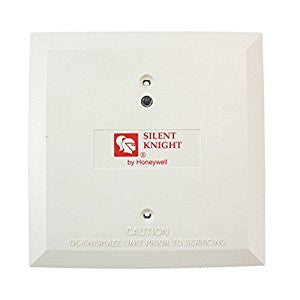

Silent Knight SK-RELAY Addressable Relay Module

  • Sale
  • $118.74
  • Regular price $189.98


The SK-Relay allows a Silent Knight FACP to switch discrete contacts by code command. The relay contains two isolated sets of Form C contacts, which operate as a DPDT switch. No supervision is provided for the notification appliance circuit. The SK-Relay contacts can be used for virtually any normally open or normally closed application. Each SKRelay is programmed with a unique signaling line circuit (SLC) loop address. When an event occurs that controls the SK-Relay, the relay is triggered by the FACP.

Compatibility

The SK-Relay is compatible with the following
IntelliKnight FACP’s:

  • 5700
  • 5808
  • 5820XL



Features

  • Relay programming is completely flexible–can be mapped to zone conditions.
  • Panel controlled status LED that flashes green in normal state and is solid red in alarm
  • Polling LED visible through the cover plate
  • Attractive ivory cover plate.
  • Rotary address switches for fast installation.
  • UL Listed.
  • SEMS screws for easy wiring.
