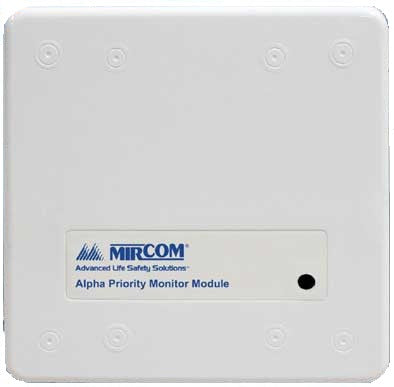

Mircom MIX-100P Alpha Priority Monitor Module

  • Sale
  • Regular price $75.00


Description

The Alpha Priority Monitor Module is an addressable loop-powered device, which incorporates a monitored input circuit for connection switches. The module is supplied as a small plastic housing designed to fit into an electrical box. It also has a priority interrupt facility to give fast response to devices such as pull stations, and can be fitted to a standard 4" x 4" electrical box.

Features

  • Easy to install
  • Low current draw
  • Designed to meet a wide range of applications
  • Addressable
  • Eight position dip switch for address setting
  • Each module can be addressed from 1 to 126
  • Fast response
  • For use with the FX-350 Series Fire Alarm Control Panel
  • Monitor modules can be wired as a Class A (Style D) or Class B (Style B)

Technical Data



Specifications
Normal operating voltage 16-24 VDC
Max wiring loop resistance 40 Ω
Temperature range 0°C to 49°C (32°F to 120°F
 Humidity 0% to 95% (no condensing or icing)
 Monitored circuit current consumption
Quiescent 600µA
Alarm (LED on) 4.6mA
End-of-line supervisory resistance 47KΩ, 0.5W
Analog levels
Open-circuit fault 4
Normal 16
Alarm on switch closure 64
