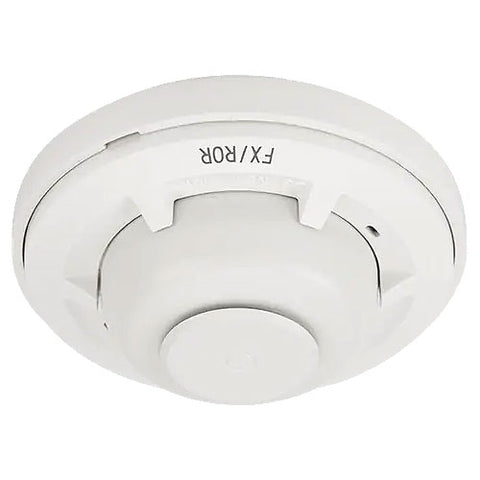

System Sensor 5602 194°F Fixed Temp/Rate-of-Rise

  • Sale
  • $16.31
  • Regular price $29.50

Multiple configurations. The 5600 series offers a full-line of configurations to accommodate a broad range of applications. Both single- and dual-circuit models are available for low- and high-temperature ratings with either fixed temperature or combination fixed temperature/rate-of-rise (ROR) activation. The ROR element of the fixed/ROR models is restorable to accommodate field-testing.

Installation flexibility. To satisfy a variety of installation needs, the 5600 series easily mounts to single-gang and octagonal back boxes. And these models accommodate four-square back boxes, when used with a square to round plaster ring. The reversible mounting bracket permits both flush- and surface-mount back box installations.

Visual identification. The 5600 series provides clear markings on the exterior of the unit to ensure that the proper detector is being used. Alphanumeric characters identify the activation method, as well as the temperature rating, in Fahrenheit and Celsius degrees. Fixed temperature models are identified FX, while combination fixed/rate-of-rise units are marked FX/ROR. The 5600 series also provides a post-activation indicator in the form of a collector. When the detector is activated, the collector drops from the unit, making it easy to identify the unit in alarm.


  • Multiple configurations for installations: – Single- and dual-circuit models – Fixed temp and combination fixed- temp/rate-of-rise 194°F ratings.
  • Easy-to-use terminal screws
  • A broad range of back box mounting options: – Single gang – 3.5? and 4? Octagonal – 4? square with square to round plaster ring
  • Reversible mounting bracket


Maximum Installation Temperature 150°F (65.6°C)
Operating Humidity Range 5 to 95% RH non-condensing
Dimensions with mounting bracket Diameter: 4.57 inches (11.6cm) Height: 1.69 inches (4.3cm)
Alarm Temperature 194°F (90°C)
Rate-of-Rise Threshold 15°F (8.3°C) rise per minute
Mounting 3½-inch octagonal back box 4-inch octagonal back box Single gang back box 4-inch square back box with a square to round plaster ring
Operating Voltage / Contact Ratings (6–125VAC / 3A) (6–28VDC / 1A) (125VDC / 0.3A) (250VDC / 0.1A)
Input Terminals 14–22 AWG
