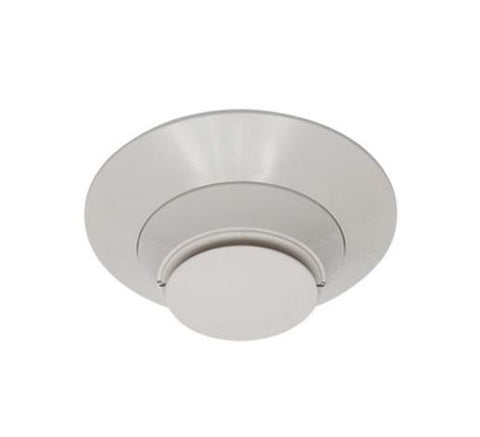

The Silent Knight® SK-HEAT-W Series heat detectors are designed for both performance and aesthetics. A new modern, sleek, contemporary design and advanced thermal technologies make the SK-HEAT-W Series ideal for both system operation and building design. The series includes a 135°F/57°C fixed-temperature, rate-of-rise, and a 180°F/88°C fixed high-temperature detectors and are direct replacements for the SK-HEAT Series heat detectors. The point ID address, set using rotary decimal switches, provide specific detector locations. These thermal detectors provide effective, intelligent property protection in a variety of applications.
• SK-HEAT-W offers 135°F fixed thermal detection.
• SK-HEAT-ROR-W offers 135°F fixed and rate-of-rise thermal detection
• SK-HEAT-HT-W provides fixed high-temperature detection at 190°F.
FEATURES & BENEFITS
• Designed to meet UL 268 7th Edition
• Sleek and stylish contemporary design
• Advanced thermal technology for fastresponse
• Fixed temperature model (SK-HEAT-W) factory preset to 135°F (57°C)
•Rate-of-rise model (SK-HEAT-ROR-W), 15°F (8.3°C) per minute
• High temperature model (SK-HEAT-HT-W) factory preset to 190°F (88°C)
• Addressable by device
• Rotary, decimal addressing (Refer to the Silent Knight panel manuals for device capacity)
• Two-wire SLC connection
• LEDs blink every time the unit is polled
• 360°-field viewing angle of the visual alarm indicators (two bi-color LEDs); LEDs blink green in Normal condition and turn on steady red in Alarm
• Integral communications and built-indevice-type identification
• Remote test feature from the panel
• Built-in functional test switch activated by external magnet
• Walk test with address display (an address of 121 will blink the detector LED 12-(pause)-1)
• Low standby current• Built-in tamper-resistant feature
