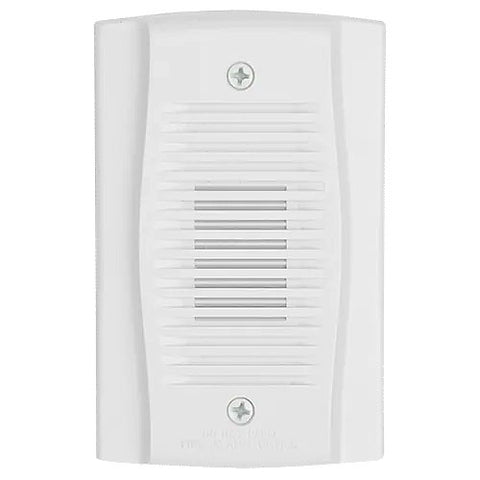

System Sensor MHW Mini-Horn ceiling or wall mounting

  • Sale
  • $16.34
  • Regular price $28.47



**CALL FOR AVAILABILITY**

Mini-horns shall be a System Sensor Model MHR or MHW capable of operating at nominal 12 or 24VDC and shall mount to a deep single gang back box. Mini-horn shall be listed to Underwriter’s Laboratories Standard UL464 for fire protective signaling systems. Mini-horns shall operate between 32 and 120 degrees Fahrenheit from a regulated DC, or full-wave rectified, unfiltered power supply. When used with the Sync•Circuit™ Module, 12-volt rated notification appliance circuit outputs shall operate between nine and 17.5 volts; 24-volt rated notification appliance circuit outputs shall operate between 17 and 33 volts.

Features

  • 12 and 24V operation
  • High and low volume settings
  • Temporal and non-temporal tones
  • Mounts to single gang back box
  • Compatible with MDL sync module
  • Mechanically and electrically compatible with PA400 series Mini-Alert™ sounders
  • Listing for ceiling or wall mounting
  • Dimensions: 4.6"L × 2.9"W × .45"D (117 mm L × 74 mm W × 11.5 mm D)
