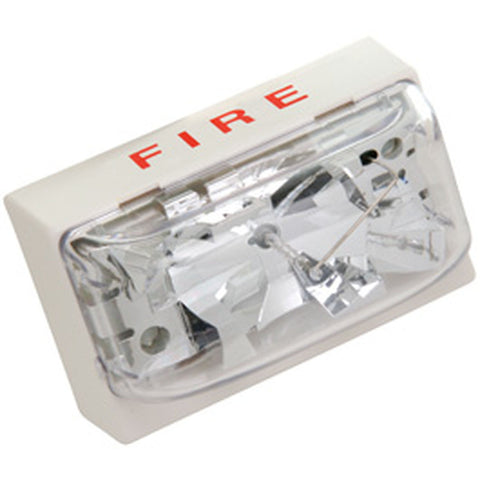

Simplex 4906-9104 Strobe M/C Non-Addresable Ceiling Mount

  • Sale
  • $68.00
  • Regular price $165.00


Features


Visible only (V/O) 24 VDC notification appliances with high output xenon strobe, available for wall or ceiling mount: Intensity is selectable as 15, 30, 75, or 110 candela with visible selection jumper secured behind strobe housing  Polarized input allows connection to compatible reverse polarity, supervised notification appliance circuit (NAC)

Regulated circuit design ensures consistent flash output
and provides controlled inrush current Rugged, high impact, flame retardant thermoplastic housings are available in red or white with clear lens Listed to UL 1971 and ULC S526 strobes provide synchronized flash for use with:

4006, 4008, 4010, and 4100U Series fire alarm control
panels with NACs selected to provide strobe
synchronization or SmartSync two-wire control** 4009 IDNet™ NAC Extenders

Separate strobe Synchronization Modules that are available for Class B or Class A operation Separate SmartSync Control Modules (SCMs) that
provide Class B or Class A output from conventional NAC inputs Strobe housings provides flexible, easy, and convenient semi-flush or surface wall mounting:

Rear of housing does not extend into box Wall mount strobes easily mount to single gang, double gang, or 4-inch square outlet box Ceiling mount strobes mount to single gang boxes Wall mount strobe features:

Wiring terminals are accessible from the front of the housing providing easy access for installation, inspection, and testing Covers are available separately to convert housing color

Optional adapters and wire guards:

Wall mount strobe adapters are available to cover surface mounted electrical boxes and to adapt to Simplex 2975-9145 boxes

UL listed red wire guards are available for wall or
ceiling mount strobes*
