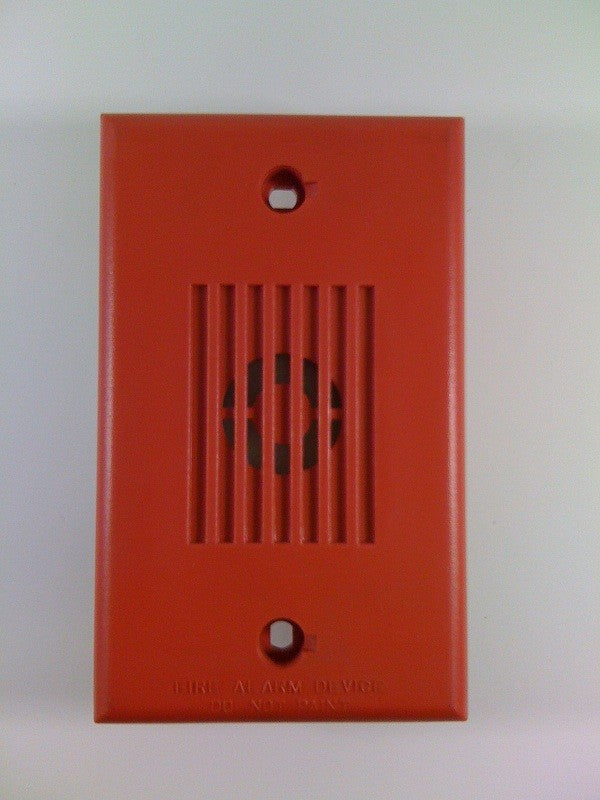

The Series MIZ-24S models provide
a field selectable Continuous or Code 3 horn tone when
connected directly to a fire alarm control panel. They
can also provide a synchronized code 3 horn tone using
the Wheelock DSM Sync Modules or Wheelock Power
Supplies. The series MIZ appliances are attractive, offer
high sound output along with low current draw and are
ideal for alarm signaling in individual rooms, apartments,
hotels, motels and offices. Color choices of red or off-white
will blend with any décor.
Features:
• Approvals include: UL Standard 464, California State Fire
Marshal (CSFM), New York City (MEA), and Factory Mutual (FM)
• Field selectable settings for Temporal (Code 3) or Continuous Horn
• Synchronized code 3 horn when used with Wheelock Sync Module
• Designed to meet or exceed NFPA/ANSI standards
• Convenient mounting to any standard single-gang box
• Beauty plugs to cover mounting screws
• No additional trimplate required for flush mounting
• Fast installation with In/Out screw terminals using #12 to #18 AWG
• High sound output with low current draw
• Available in red or off-white color
