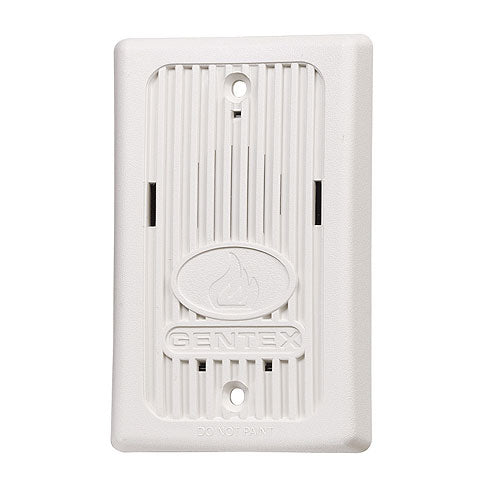

Gentex GX93-W Mini Horn 12/24VDC-White

  • Sale
  • Regular price $22.99

The GX93 Series mini-horn is a high quality remote signaling appliance that offers dependable remote annunciation. The GX93 is listed for use with both filtered and unfiltered power. This unit is not synchable with the AVS44 control module. It is however synchable from the panel. With the GX93 a jumper is provided to select either the continuous tone or the temporal 3 evacuation tone.

Main Features

  • Single unit is capable of 12 or 24 VDC determined by the input voltage
  • Unit dimensions: 4.48" (11.38 cm) high x 2.84" (7.21 cm) wide x 0.5" (1.27 cm) deep
  • Jumper selectable temporal 3 or continuous tone
  • Horn frequency is 3100Hz
  • Terminal blocks (12 AWG to 18 AWG)
  • Low current consumption
  • Variety of mounting options for new construction and retrofit applications
  • Synchronize using the Gentex AVSM Series control module (see Technical Bulletin 015)
  • ANSI/UL 464 listed for fire protective service
  • Textured finish high impact plastic faceplate, available in red or off-white
