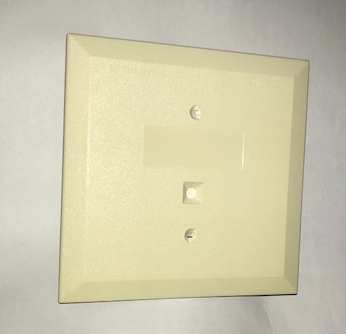

Firelite M5025M Intelligent Interface Module

  • Sale
  • Regular price $85.00

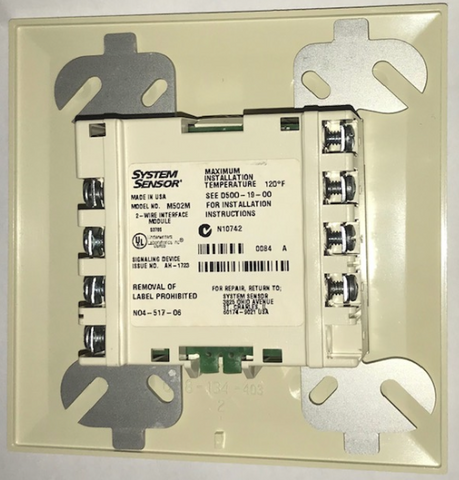

The M502M Interface Module is intended for use in intelligent, two-wire systems, where the individual address of each module is selected using the built-in rotary decade switches. This module allows intelligent panels to interface and monitor two-wire con-ventional smoke detectors. It transmits the status (normal, open, or alarm) of one full zone of conventional detectors back to the control panel. All two-wire detectors being monitored must be UL compatible with this module. The M502M has a panel controlled LED indicator.


Normal Operating Voltage: 5 to 32 VDC

Maximum Current Draw: 5.mA (LED on)

Average Operating Current: 300μA, communication and LED flash every 5 seconds, 3.9k eol

EOL Resistance: 3.9K Ohms

Maximum IDC wiring resistance: 25

Ohms IDC Supply Voltage (between Terminals T3 and T4)

Regulated DC Voltage: 24 VDC power limited

Ripple Voltage: 0. Volts RMS maximum

Current: 90mA per module

Temperature Range: 32 ̊F to 20 ̊F (0 ̊C to 49 ̊C)Humidity: 0% to 93% Non-condensing

Dimensions: 42 ̋ H x 4 ̋ W x 4 ̋ D (Mounts to a 4 ̋ square by 28 ̋ deep box.)

Accessories: SMB500 Electrical Box
