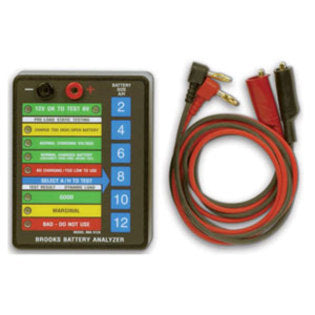

The BBA 612 Dynamic Battery Analyzer is a microprocessor controlled, host powered instrument designed to test and evaluate the standby charged condition and dynamic capabilities under load of a 6 or 12 volt, sealed, leadacid battery. It will also give an indication of the performance of the associated charging system. A static test is initiated by connecting the test leads of the instrument to the battery to be analyzed. The BBA 612 monitors battery and charging circuit voltage and indicates the results on an easy to read LED display.
Pre-load static test: Charging system connected: Charge voltage too high or open battery, charging normal, no charging voltage.Battery only: Charge too high or open cell, normal charge, insufficient voltage to test or shorted cell.
A microprocessor controlled load test sequence is then operator initiated with the battery disconnected from the charging circuit. The load current is based on the battery’s rated AmpHour capacity. The battery condition is evaluated during the load test and latched at the termination. Dynamic load test result: Battery condition: Good, marginal, bad.
Features
- Tests 6V and 12V Batteries
- Powered by battery under test
- Equipped with leads
- Automatic selection of battery voltage
Specifications
| Input Voltage from battery: | 5-16VDC |
| Load Current: | 30 ma. during static test, 3.5 Amps max. during dynamic test. |
| Dynamic load current: | 1.0 to 3.5 Amps, dependent on A.H. selected. |
| Input Terminals: | Standard Banana Jacks, color coded. |
| Operating temperature: | 0 to 140 degrees F. (-17 to 50 degreesC.). Overtemperature shutdown at 140 degrees F. |
| Warranty: | Two years. |
