Gamewll-FCI GWRCE-95 Relay Control Element


Gamewll-FCI GWRCE-95 Relay Control Element

  • Sale
  • $131.10
  • $138.00

 **CALL FOR AVAILABILITY**


**FCI Products can only be purchased in the State of Florida**

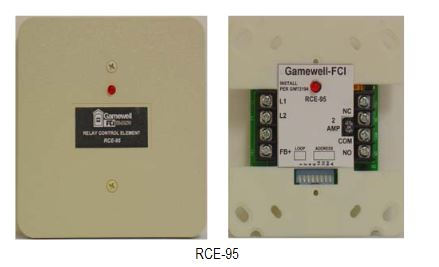

The Gamewell-FCI Relay Control Element (RCE-95) is the interface between the Gamewell-FCI, 600 Series andIL95-E3 Series® Fire Alarm Control Panel (FACP) analog circuits and building functions such as door holders, elevators, dampers, motors and disconnects. The RCE-95offers feedback input points for positive confirmation of the controlled device’s activity. For annunciation and feedback at the panel, Gamewell-FCI offers a Relay Control Display(RCD). The RCD is only available with the IdentiFlex 632and IF650 FACPs.The RCE-95 can be either surface or flush mounted and has an integral LED which annunciates upon device activation.

Features
  • Compatible with the Gamewell-FCI, 600 Series and ILI95-E3 Series analog addressable FACP'S
  • Supports Form-C dry relay contacts
  • Offers event or manual controllable relay functions
  • Provides positive feedback of relay activation
  • Contains LED annunciates activation
  • Is fully supervised
  • Has surface or flush mounting
  • Field programmable
  • Style 4, 6, or 7 wiring
  • Includes Screw terminals for field wiring connections
